3510 Axial Series

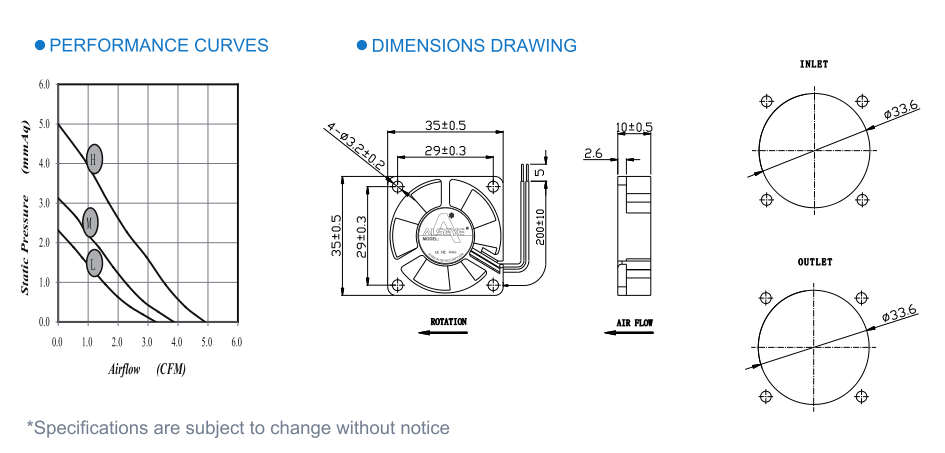

Demensions: 35×35×10 mm
Bearing Type:Sleeve,Hydraulic,Ball Bearing
Function Type:FG/RD Signal,PWM pulse
Protection:Auto Restart Protection or General Options
Lead Wire:UL 1061#28AWG or Equivalent
Red Wire:Positive(+)
Black Wire:Negative(-)
Description
| MODEL NO | RATING VOLTAGE | RATED CURRENT | POWER | SPEED | AIR FLOW | STATIC PRESSURE | NOISE LEVEL | CURVE | ||
| V | A | W | RPM | CMM | CFM | MMH20 | INH20 | (dBA) | ||
| 3510BVL-N(P/M)5 | 5 | 0.14 | 0.70 | 6500 | 0.092 | 3.25 | 2.19 | 0.086 | 27.3 | L |
| 3510BVM-N(P/M)5 | 5 | 0.22 | 1.10 | 7500 | 0.109 | 3.86 | 2.96 | 0.117 | 30.1 | M |
| 3510BVH-N(P/M)5 | 5 | 0.35 | 1.75 | 9500 | 0.139 | 4.90 | 4.74 | 0.187 | 35.4 | H |
| 3510BVL-N(P/M)1 | 12 | 0.09 | 1.08 | 6500 | 0.092 | 3.25 | 2.19 | 0.086 | 27.3 | L |
| 3510BVM-N(P/M)1 | 12 | 0.18 | 2.16 | 7500 | 0.109 | 3.86 | 2.96 | 0.117 | 30.1 | M |
| 3510BVH-N(P/M)1 | 12 | 0.32 | 3.84 | 9500 | 0.139 | 4.90 | 4.74 | 0.187 | 35.4 | H |
