4028 Axial Series

Demensions: 40X40X28 mm
Bearing Ty T T pe:Sleeve,Hydraulic,Ball Bearing
Function Ty T T pe:FG/RD Signal,PWM pulse
Protection:Auto Restart r r Protection or General Options
Lead Wire:UL 1061#26W A A G or Equivalent
Red Wire:Positive(+)
Black Wire:Negative(-)

Compare

Add to wishlist

SKU: 4028 Axial Series Category: DC Fans

Description
Reviews (0)

Description

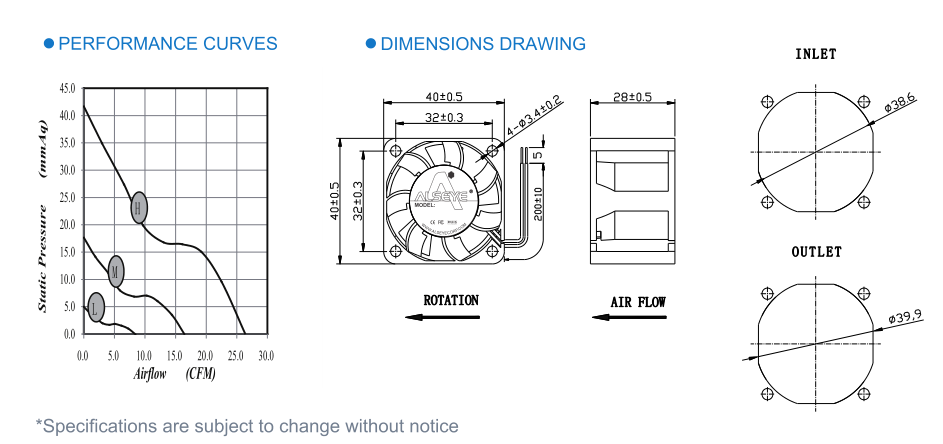

MODEL NO	RATING VOLTAGE	RATED CURRENT	POWER	SPEED	AIR FLOW		STATIC PRESSURE		NOISE LEVEL	CURVE
	V	A	W	RPM	CMM	CFM	MMH20	INH20	(dBA)
4028BVL-N(P/M)1	12	0.35	4.20	5500	0.239	8.43	4.77	0.188	24.7	L
4028BVM-N(P/M)1	12	0.50	6.00	10000	0.465	16.41	16.92	0.666	40.8	M
4028BVH-N(P/M)1	12	0.66	7.92	16000	0.746	26.34	40.75	1.604	56.3	H
4028BVL-N(P/M)2	24	0.20	4.80	5500	0.239	8.43	4.77	0.188	24.7	L
4028BVM-N(P/M)2	24	0.30	7.20	10000	0.465	16.41	16.92	0.666	40.8	M
4028BVH-N(P/M)2	24	0.45	10.80	16000	0.746	26.34	40.75	1.604	54.3	H
