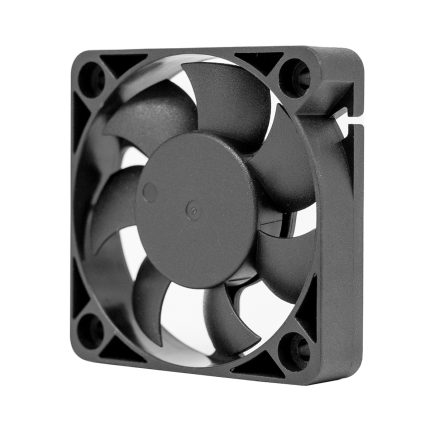

6015 Axial Series

Demensions: 60X60X15 mm
Bearing Ty T T pe:Sleeve,Hydraulic,Ball Bearing
Function Ty T T pe:FG/RD Signal,PWM pulse
Protection:Auto Restart r r Protection or General Options
Lead Wire:UL 1061#26W A A G or Equivalent
Red Wire:Positive(+)
Black Wire:Negative(-)

SKU: 6015 Axial Series Category: DC Fans

MODEL NO	RATING VOLTAGE V	RATED CURRENT A	POWER W	SPEED RPM	AIR FLOW		STATIC PRESSURE		NOISE LEVEL	CURVE
MODEL NO	RATING VOLTAGE V	RATED CURRENT A	POWER W	SPEED RPM	CMM	CFM	MMH20	INH20	(dBA)	CURVE
6015S(B)VL-N(P/M)5	5	0.25	1.25	3000	0.324	11.44	2.24	0.088	22.4	L
6015S(B)VM-N(P/M)5	5	0.35	1.75	4600	0.513	18.12	5.28	0.208	32.5	M
6015S(B)VH-N(P/M)5	5	0.50	2.50	5400	0.604	21.32	7.11	0.280	37.9	H
6015S(B)VL-N(P/M)1	12	0.22	2.64	3000	0.324	11.44	2.24	0.088	22.4	L
6015S(B)VM-N(P/M)1	12	0.33	3.96	4600	0.513	18.12	5.28	0.208	32.5	M
6015S(B)VH-N(P/M)1	12	0.45	5.40	5400	0.604	21.32	7.11	0.280	37.9	H
6015S(B)VL-N(P/M)2	24	0.10	2.40	3000	0.324	11.44	2.24	0.088	22.4	L
6015S(B)VM-N(P/M)2	24	0.18	4.32	4600	0.513	18.12	5.28	0.208	32.5	M
6015S(B)VH-N(P/M)2	24	0.28	6.72	5400	0.604	21.32	7.11	0.280	37.9	H
