7025 Axial Series
Demensions: 70×70×25 mm
Bearing Type:Sleeve,Hydraulic,Ball Bearing
Function Type:FG/RD Signal,PWM pulse
Protection:Auto Restart Protection or General Options
Lead Wire:UL 1061#26AWG or Equivalent
Red Wire:Positive(+)
Black Wire:Negative(-)
Description

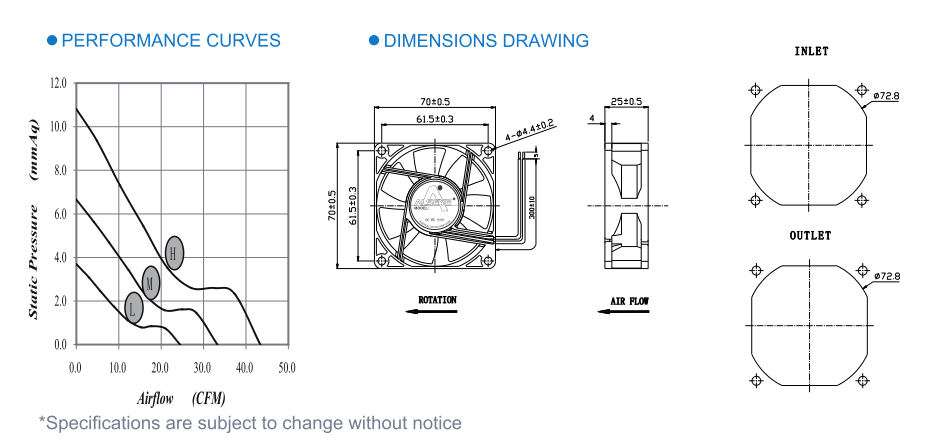

| MODEL NO | RATING VOLTAGE | RATED CURRENT | POWER | SPEED | AIR FLOW | STATIC PRESSURE | NOISE LEVEL | CURVE | ||
| V | A | W | RPM | CMM | CFM | MMH20 | INH20 | (dBA) | ||
| 7025S(B/R)VL-N(P/M)1 | 12 | 0.25 | 3.00 | 3200 | 0.694 | 24.51 | 3.55 | 0.140 | 31.4 | L |
| 7025S(B/R)VM-N(P/M)1 | 12 | 0.35 | 4.20 | 4400 | 0.941 | 33.24 | 6.39 | 0.252 | 39.4 | M |
| 7025S(B/R)VH-N(P/M)1 | 12 | 0.55 | 6.60 | 5600 | 1.228 | 43.35 | 10.39 | 0.409 | 45.2 | H |
| 7025S(B/R)VL-N(P/M)2 | 24 | 0.10 | 2.40 | 3200 | 0.694 | 24.51 | 3.55 | 0.140 | 31.4 | L |
| 7025S(B/R)VM-N(P/M)2 | 24 | 0.20 | 4.80 | 4400 | 0.941 | 33.24 | 6.39 | 0.252 | 39.4 | M |
| 7025S(B/R)VH-N(P/M)2 | 24 | 0.32 | 7.68 | 5600 | 1.228 | 43.35 | 10.39 | 0.409 | 45.2 | H |
